Track correlation algorithm based on CNN-LSTM for swarm targets

doi:10.23919/JSEE.2024.000033

Abstract

Abstract:

The rapid development of unmanned aerial vehicle (UAV) swarm, a new type of aerial threat target, has brought great pressure to the air defense early warning system. At present, most of the track correlation algorithms only use part of the target location, speed, and other information for correlation. In this paper, the artificial neural network method is used to establish the corresponding intelligent track correlation model and method according to the characteristics of swarm targets. Precisely, a route correlation method based on convolutional neural networks (CNN) and long short-term memory (LSTM) Neural network is designed. In this model, the CNN is used to extract the formation characteristics of UAV swarm and the spatial position characteristics of single UAV track in the formation, while the LSTM is used to extract the time characteristics of UAV swarm. Experimental results show that compared with the traditional algorithms, the algorithm based on CNN-LSTM neural network can make full use of multiple feature information of the target, and has better robustness and accuracy for swarm targets.

Key words: track correlation, correlation accuracy rate, swarm target, convolutional neural network (CNN), long short-term memory (LSTM) neural network

Jinyang CHEN, Xuhua WANG, Xian CHEN. Track correlation algorithm based on CNN-LSTM for swarm targets[J]. Journal of Systems Engineering and Electronics, 2024, 35(2): 417-429.

Figures/Tables 19

Fig 1

Fig 2

Fig 3

Fig 4

Fig 5

Fig 6

Fig 7

Fig 8

Fig 9

Fig 10

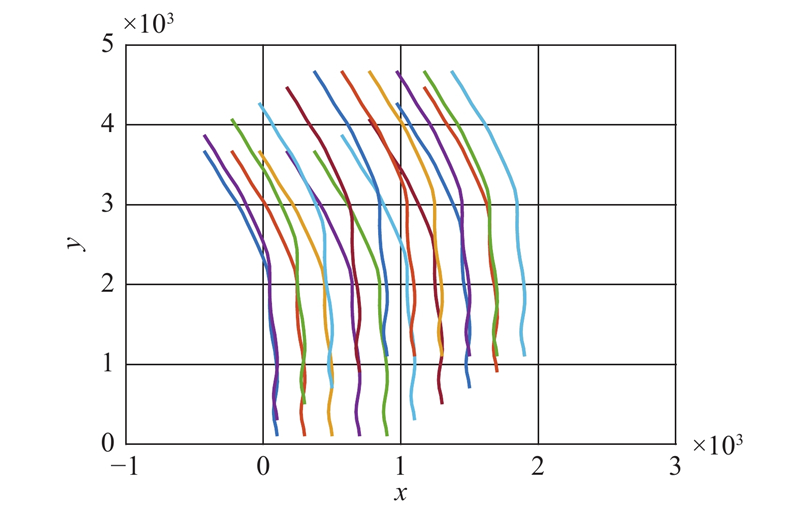

Fig 11

Fig 12

Fig 13

Fig 14

Fig 15

Fig 16

Table 1

Fig 17

Table 2

References 30

1	KANYUCK A, SINGER R. Correlation of multiple-site track data. IEEE Trans. on Aerospace & Electronic Systems, 1970, 6(2): 180−187.
2	QIN B Y, ZHANG D, TANG S, et al Two-layer formation-containment fault-tolerant control of fixed-wing UAV swarm for dynamic target tracking. Journal of Systems Engineering and Electronics, 2023, 34 (6): 1375- 1396. doi: 10.23919/JSEE.2023.000153
3	KOSAKA M, MIYAMOTO S, IHARA H A track correlation algorithm for multi-sensor integration. Journal of Guidance Control & Dynamics, 1987, 10 (2): 166- 171.
4	GAN Y Y, LIU C T, LI H C, et al A camouflage target detection method based on local minimum difference constraints. Journal of Systems Engineering and Electronics, 2023, 34 (3): 696- 705. doi: 10.23919/JSEE.2022.000049
5	HE Y, TAN Q, JIANG R R Path correlation algorithm in multi-sensor integrated system design. Fire Control & Command Control, 1989, 14 (1): 1- 12.
6	HE Y. Multi-sensor information fusion and application. 2nd ed. Beijing: Publishing House of Electronics Industry, 2007. (in Chinese)
7	CUI Y Q, LIU Y, TANG T T , et al. A new adaptive track correlation method for multiple scenarios. IET Radar, Sonar & Navigation, 2021, 15(9): 1112−1124.
8	MA M Y, WANG D J, ZHANG T, et al. Track-to-track association algorithm for passive multisensor system based on trajectory parameter. IET Radar, Sonar & Navigation, 2021, 15(4): 348−358.
9	WANG J, ZENG Y J, WEI S M, et al Multi-sensor track-to-track association and spatial registration algorithm under incomplete measurements. IEEE Trans. on Signal Processing, 2021, 69, 3337- 3350. doi: 10.1109/TSP.2021.3084533
10	LI B Z, DONG Y L, HUANG G D, et al Radar/ESM anti-bias track association algorithm based on track distance vector detection. The Journal of Engineering, 2019, 2019 (21): 7563- 7567. doi: 10.1049/joe.2019.0647
11	FAN L X, FAN E, YUAN C H, et al Weighted fuzzy track association method based on Dempster-Shafer theory in distributed sensor networks. International Journal of Distributed Sensor Networks, 2016, 16 (7): 15- 21.
12	YAO Q H, WANG Y, YANG Y X Range estimation of few-shot underwater sound source in shallow water based on transfer learning and residual CNN. Journal of Systems Engineering and Electronics, 2023, 34 (4): 839- 850. doi: 10.23919/JSEE.2023.000095
13	SHI C P, ZHANG X L, WANG L G A lightweight convolutional neural network based on channel multi-group fusion for remote sensing scene classification. Remote Sensing, 2021, 14 (1): 9. doi: 10.3390/rs14010009
14	WONG P K, LUO H, WANG M Z, et al Enriched and discriminative convolutional neural network features for pedestrian re-identification and trajectory modeling. Computer-Aided Civil and Infrastructure Engineering, 2021, 37 (5): 573- 592.
15	YU C P, XIONG W, LI X Q, et al Deep convolutional neural network for meteorology target detection in airborne weather radar images. Journal of Systems Engineering and Electronics, 2023, 34 (5): 1147- 1157. doi: 10.23919/JSEE.2023.000142
16	WANG Y T. Ship track prediction based on CNN and LSTM. Dalian: Dalian Maritime University, 2020. (in Chinese)
17	ZENG Y, LU W B, YU B, et al Improved IMM algorithm based on support vector regression for UAV tracking. Journal of Systems Engineering and Electronics, 2022, 33 (4): 867- 876. doi: 10.23919/JSEE.2022.000075
18	XIE T S, DENG J L, CHENG X. Feature mining: A novel training strategy for convolutional neural network. Applied Sciences, 2022, 12(7): 3318−3318.
19	QI C, ZENG X L, WANG Y J, et al. Adaptive time window convolutional neural networks concerning multiple operation modes with applications in energy efficiency predictions. Energy, 2022, 240: 122506.
20	WU X B. Big data classification of remote sensing image based on cloud computing and convolutional neural network. Soft Computing, 2022. DOI: https://doi.org/10.1007/s00500-021-06562-y.
21	GE N, SUN L Y, SHI X D, et al. Journal of Computer Science, 2019, 46(S1): 446−451. (in Chinese)
22	JIA D Y. Research on joint optimization strategy based on SiPESC platform and tensorflow framework. Dalian: Dalian University of Technology, 2021. (in Chinese)
23	FU D, LI X J, MOU W H, et al. Navigation jamming signal recognition based on long short-term memory neural networks. Journal of Systems Engineering and Electronics, 2022, 33 (4): 835−844.
24	LI S, WANG S L, XIE D B Research on radar clutter recognition method based on LSTM. The Journal of Engineering, 2019, 2019 (19): 6247- 6251. doi: 10.1049/joe.2019.0242
25	XIA J W, ZHU X F, LIU Z LSTM-DPPO based deep reinforcement learning controller for path following optimization of unmanned surface vehicle. Journal of Systems Engineering and Electronics, 2023, 34 (5): 1343- 1358. doi: 10.23919/JSEE.2023.000113
26	LAN P, XIA K W, PAN Y K, et al An improved equilibrium optimizer algorithm and its application in LSTM neural network. Symmetry, 2021, 13 (9): 1706. doi: 10.3390/sym13091706
27	FAN Q J, YANG Z, FANG T, et al Research status of cooperative formation flight control of multiple UAVs. Acta Aeronautica et Astronautica Sinica, 2009, 30 (4): 683- 691.
28	ZHOU L. Study on design and control method of flying geese system of UAV group. Nanjing : Nanjing University of Science and Technology, 2019. (in Chinese)
29	ZHU J B, QIN S Y Distributed control strategy and controller design for UAV formation flight. Journal of Intelligent Systems, 2010, 5, 392- 399.
30	LI H J. Research on multi-sensor target track association based on machine learning. Xi’an: Xidian University, 2020. (in Chinese)

Swarm size	Formation
Swarm size	“One-line”	“V-line”	“Diamond”	“Arrow”
8	99.34	98.42	98.51	98.12
80	95.41	94.88	94.71	94.34
400	91.30	90.03	89.86	88.08
800	84.76	83.14	83.72	81.89

Swarm formation style	End-to-end track association algorithm	Track association algorithm based on machine learning	Algorithm proposed in this paper
“One-line” formation	82.81	86.32	91.30
“V-line” formation	81.33	85.82	90.03
“Diamond” formation	70.87	84.43	89.86
“Arrow” formation	79.01	82.79	88.08
