Sound event localization and detection based on deep learning

Dada ZHAO¹^,²(), Kai DING²(), Xiaogang QI¹^,*(), Yu CHEN²(), Hailin FENG¹()

¹ School of Mathematics and Statistics, Xidian University, Xi’an 710071, China
² Science and Technology on Near-Surface Detection Laboratory, Wuxi 214035, China

Received:2021-06-06 Accepted:2023-02-24 Online:2024-04-18 Published:2024-04-18
Contact: Xiaogang QI E-mail:ddzhao@stu.xidian.edu.cn;winfast113@sina.com;xgqi@xidian.edu.cn;cy0520tool@sohu.com;hlfeng@xidian.edu.cn
About author:
ZHAO Dada was born in 1997. He received his B.S. degree in statistics from the School of Mathematical Sciences, Shanxi University, Taiyuan, China, in 2015. He is pursuing his M.S. degree in statistics with Xidian University. His research interests are signal processing and acoustic source localization. E-mail: ddzhao@stu.xidian.edu.cn

DING Kai was born in 1983. He received his Ph.D. degree in weapon science and technology from Army Engineering University of the PLA in 2013. He is an engineer in the Science and Technology on Near-Surface Detection Laboratory. His current research interests include passive target recognition and intelligent network. E-mail: winfast113@sina.com

QI Xiaogang was born in 1973. He is a professor and Ph.D. supervisor in the School of Mathematics and Statistics, Xidian University. He received his Ph.D. degree in applied mathematics from Xidian University in 2005 where he joined as a faculty member in 2002. He became an associate professor in 2006. From September 2012 to August 2013, he is a visiting scholar in the School of Electrical, Computer and Energy Engineering of Arizona State University. His research interests include system modeling and simulation, resource management and scheduling, performance evaluation and optimization algorithm design, and fault diagnosis in various networks. E-mail: xgqi@xidian.edu.cn

CHEN Yu was born in 1980. He received his M.S. degree in physical electronics from National University of Defense Technology in 2005. He is an assistant researcher in the Science and Technology on Near-Surface Detection Laboratory. His current research interests include passive target recognition and intelligent network. E-mail: cy0520tool@sohu.com

FENG Hailin was born in 1966. She received her B.S. degree in mathematics from Yan’an University, Yan’an, China, in 1988, and M.S. and Ph.D. degrees in applied mathematics from Xidian University, Xi’an, China, in 1991 and 2004, respectively. She is a professor in the School of Mathematics and Statistics, Xidian University. Her current research interests include system reliability modeling and survival data analysis. E-mail: hlfeng@xidian.edu.cn
Supported by:
This work was supported by the National Natural Science Foundation of China (61877067), the Foundation of Science and Technology on Near-Surface Detection Laboratory (TCGZ2019A002; TCGZ2021C003;6142414200511), and the Natural Science Basic Research Program of Shaanxi (2021JZ-19).

Abstract

Abstract:

Acoustic source localization (ASL) and sound event detection (SED) are two widely pursued independent research fields. In recent years, in order to achieve a more complete spatial and temporal representation of sound field, sound event localization and detection (SELD) has become a very active research topic. This paper presents a deep learning-based multi-overlapping sound event localization and detection algorithm in three-dimensional space. Log-Mel spectrum and generalized cross-correlation spectrum are joined together in channel dimension as input features. These features are classified and regressed in parallel after training by a neural network to obtain sound recognition and localization results respectively. The channel attention mechanism is also introduced in the network to selectively enhance the features containing essential information and suppress the useless features. Finally, a thourough comparison confirms the efficiency and effectiveness of the proposed SELD algorithm. Field experiments show that the proposed algorithm is robust to reverberation and environment and can achieve higher recognition and localization accuracy compared with the baseline method.

Key words: sound event localization and detection (SELD), deep learning, convolutional recursive neural network (CRNN), channel attention mechanism

Dada ZHAO, Kai DING, Xiaogang QI, Yu CHEN, Hailin FENG. Sound event localization and detection based on deep learning[J]. Journal of Systems Engineering and Electronics, 2024, 35(2): 294-301.

Figures/Tables 4

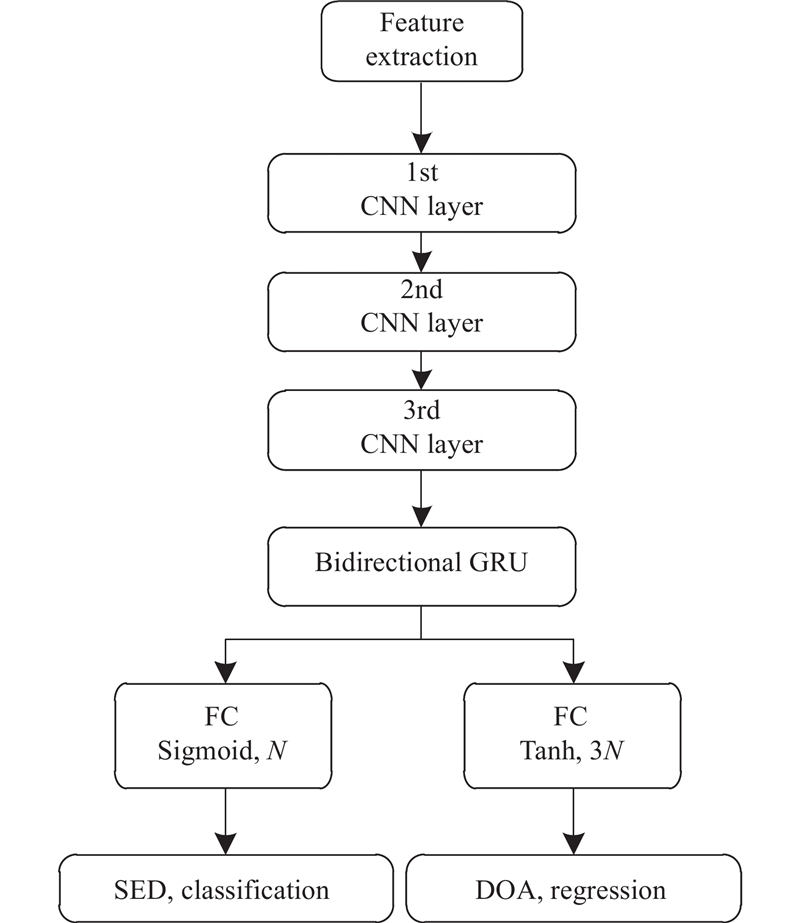

Fig 1

Fig 2

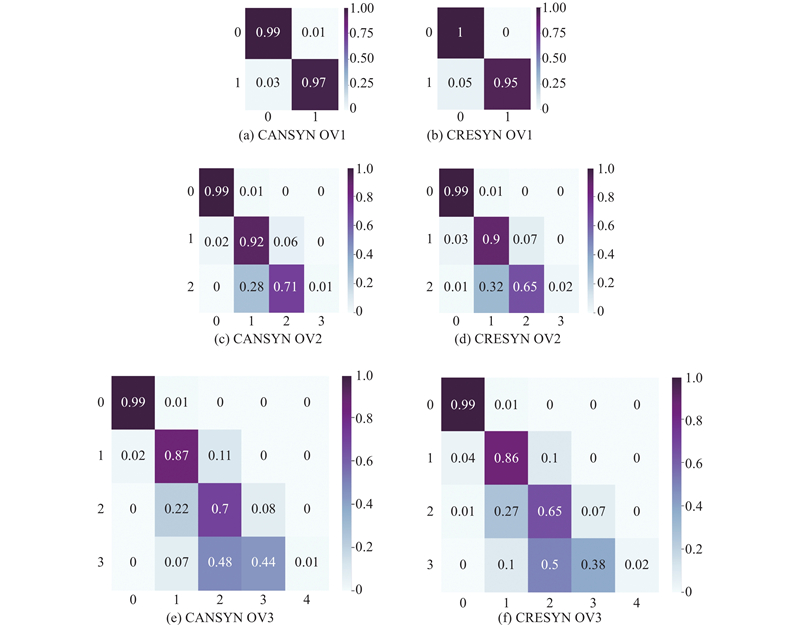

Fig 3

Table 1

References 34

1	MESAROS A Sound event detection in the DCASE 2017 challenge. IEEE/ACM Trans. on Audio, Speech, Language Processing, 2019, 27 (6): 992- 1006. doi: 10.1109/TASLP.2019.2907016
2	SALAMON J, BELLO J P Deep convolutional neural networks and data augmentation for environmental sound classification. IEEE Signal Processing Letters, 2017, 24 (3): 279- 283. doi: 10.1109/LSP.2017.2657381
3	EVERS C, NAYLOR P A Acoustic SLAM. IEEE/ACM Trans. on Audio, Speech, and Language Processing, 2018, 26 (9): 1484- 1498. doi: 10.1109/TASLP.2018.2828321
4	MACK W, BHAEADWAJ U, CHAKRABARTY S, et al. Signal-aware broadband DOA estimation using attention mechanisms. Proc. of the IEEE International Conference Acoustics, Speech and Signal Processing, 2020, 4930- 4934.
5	VALENZISE G, GEROSA L, TAGLIASACCHI M, et al Scream and gunshot detection and localization for audio-surveillance systems. Proc. of the IEEE Conference on Advanced Video & Signal Based Surveillance, 2007, 21- 26.
6	MESAROS A, HEITTOLA T, ERONEN A, et al Acoustic event detection in real-life recordings. Proc. of the European Signal Processing Conference, 2010, 1267- 1271.
7	AKIR E C, HEITTOLA T, HUTTUNEN T, et al. Polyphonic sound event detection using multi-label deep neural networks. Proc. of the IEEE International Joint Conference on Neural Networks, 2015. DOI: 10.1109/IJCNN.2015.7280624.
8	PARASCANDOLO G, HUTTUNEN H, VIRTANEN T Recurrent neural networks for polyphonic sound event detection in real life recordings. Proc. of the IEEE International Conference Acoustics, Speech and Signal Processing, 2016, 6440- 6444.
9	ADAVANNE S, PARASCANDOLO G, PERTILA P, et al. Sound event detection in multichannel audio using spatial and harmonic features. Proc. of the Workshop on Detection Classification Acoustic Scenes and Events, 2016. DOI: 10.48550/arXiv.1706.02293.
10	HAYASHI T, WATANABE S, TODA T, et al Duration-controlled LSTM for polyphonic sound event detection. IEEE/ACM Trans. on Audio, Speech, Language Processing, 2017, 25 (11): 2059- 2070. doi: 10.1109/TASLP.2017.2740002
11	ZOHRER M, PERNKOPF F Virtual adversarial training and data augmentation for acoustic event detection with gated recurrent neural networks. Proc. of the Interspeech, 2017, 493- 497.
12	ZHANG H M, MCLOUGHLIN I, SONG Y Robust sound event recognition using convolutional neural networks. Proc. of the IEEE International Conference Acoustics, Speech and Signal Processing, 2015, 559- 563.
13	PHAN H, HERTEL L, MAASS M, et al. Robust audio event recognition with 1-max pooling convolutional neural networks. Proc. of the Interspeech, 2016. DOI: 10.48550/arXiv.1604.06338.
14	ADAVANNE S, POLITIS A, VIRTANEN T. Multichannel sound event detection using 3D convolutional neural networks for learning inter-channel features. Proc. of the IEEE International Joint Conference on Neural Networks, 2018. DOI: 10.1109/ISCNN.2018.8489542.
15	LIM H, PARK J, LEE K, et al Rare sound event detection using 1D convolutional recurrent neural networks. Proc. of the Detection and Classification of Acoustic Scenes and Events, 2017, 80- 84.
16	CAKIR E, PARASCANDOLO G, HEOTTOLA T, et al Convolutional recurrent neural networks for polyphonic sound event detection. IEEE/ACM Trans. on Audio, Speech, Language Processing, 2017, 25 (6): 1291- 1303. doi: 10.1109/TASLP.2017.2690575
17	ADAVANNE S, VIRTANEN T. A report on sound event detection with different binaural features. Proc. of the Detection and Classification Acoustic Scenes and Events, 2017. DOI: 10.1109/ICASSP.2017.7952260.
18	ADAVANNE S, PERTILA P, VIRTANEN T Sound event detection using spatial features and convolutional recurrent neural network. Proc. of the IEEE International Conference on Acoustics, Speech and Signal Processing, 2017, 771- 775.
19	BUTKO T, PLA F G, SEGURA C, et al Two-source acoustic event detection and localization: online implementation in a smart-room. Proc. of the 19th Eurpean Signal Processing Conference, 2011, 1317- 1321.
20	SCHMIDT R O Multiple emitter location and signal parameter estimation. IEEE Trans. on Antennas and Propagation, 1986, 34 (3): 276- 280. doi: 10.1109/TAP.1986.1143830
21	DIBIASE J H, SILVERMAN H F, BRANDSTEIN M S Robust localization in reverberant rooms in microphone arrays. Microphone Arrays Signal Processing Techniques & Applications, 2001, 2, 157- 180.
22	POLITIS A, MESAROS A, ADAVANNE S, et al Overview and evaluation of sound event localization and detection in DCASE 2019. IEEE/ACM Trans. on Audio, Speech, and Language Processing, 2021, 29, 684- 698. doi: 10.1109/TASLP.2020.3047233
23	CHAKRABORTY R, NADEU C Sound-model-based acoustic source localization using distributed microphone arrays. Proc. of the IEEE International Conference on Acoustics, Speech and Signal Processing, 2014, 619- 623.
24	MESAROS A Detection and classification of acoustic scenes and events: outcome of the DCASE 2016 challenge. IEEE/ACM Trans. on Audio, Speech and Language Processing, 2018, 26 (2): 379- 393. doi: 10.1109/TASLP.2017.2778423
25	NGUYEN T N T, GAN W S, RANJAN R, et al Robust source counting and DOA estimation using spatial pseudo-spectrum and convolutional neural network. IEEE/ACM Trans. on Audio, Speech, and Language Processing, 2020, 28, 2626- 2637. doi: 10.1109/TASLP.2020.3019646
26	ZHAO X Y, CHEN S W, ZHOU L, et al Sound source localization based on SRP-PHAT spatial spectrum and deep neural network. Computers, Materials and Continua, 2020, 64 (1): 253- 271. doi: 10.32604/cmc.2020.09848
27	CHAKRABARTY S, HABETS E A Multi-speaker DOA estimation using deep convolutional networks trained with noise signals. IEEE Journal Selected Topics in Signal Processing, 2019, 13 (1): 8- 21. doi: 10.1109/JSTSP.2019.2901664
28	HIRVONEN T Classification of spatial audio location and content using convolutional neural networks. Proc. of the Audio Engineering Society Convention, 2015, 9294.
29	ADAVANNE S, POLITIS A, NIKUNEN J, et al Sound event localization and detection of overlapping sources using convolutional recurrent neural networks. IEEE Journal of Selected Topics in Signal Processing, 2019, 13 (1): 34- 48. doi: 10.1109/JSTSP.2018.2885636
30	IOFFE S, SZEGEDY C Batch normalization: accelerating deep network training by reducing internal covariate shift. Proc. of the International Conference on Machine Learning, 2015, 448- 456.
31	HU J, SHEN L, ALBANIE S, et al Squeeze-and-excitation networks. IEEE Trans. on Pattern Analysis and Machine Intelligence, 2020, 42 (8): 2011- 2023. doi: 10.1109/TPAMI.2019.2913372
32	ABADI M, AGARWAL A, BARHAM P, et al. TensorFlow: large-scale machine learning on heterogeneous systems. https://www.tensorflow.org/.
33	MESAROS A, HEITTOLA T, VIRTANEN T Metrics for polyphonic sound event detection. Applied Science, 2016, 6 (6): 162.
34	CAO Y, KONG Q X, IQBAL T, et al Polyphonic sound event detection and localization using a two-stage strategy. Proc. of the Detection Classification Acoustic Scenes and Events, 2019, 30- 34.

Algorithm	Evaluation metrics	CANSYN			CRESYN
Algorithm	Evaluation metrics	OV1	OV2	OV3	OV1	OV2	OV3
SELDnet	ER	0.11	0.18	0.19	0.13	0.22	0.30
	F score	93.0	86.6	85.3	90.4	82.2	78.0
	DOA error	29.5	31.3	34.3	28.4	33.7	41.0
	Frame recall	97.9	78.8	67.0	96.4	75.7	60.7
HIRnet	ER	0.41	0.45	0.62	0.43	0.46	0.50
	F score	60.0	54.9	58.8	59.3	60.2	58.6
	DOA error	5.2	16.3	33.0	7.4	18.6	43.3
	Frame recall	60.2	35.9	18.4	56.9	20.5	10.7
MUSIC	DOA error	26.4	28.9	31.1	38.6	49.5	61.9
Two-stage	ER	0.07	0.17	0.20	0.12	0.21	0.28
	F score	95.9	91.0	84.7	92.4	84.2	81.0
	DOA error	27.6	31.3	36.2	27.0	33.5	39.8
	Frame recall	98.0	82.1	65.0	96.3	78.1	62.7
The proposed algorithm	ER	0.08	0.16	0.18	0.12	0.18	0.23
	F score	95.8	91.0	89.5	93.7	89.5	86.2
	DOA error	28.5	31.0	32.6	27.2	32.4	38.4
	Frame recall	97.8	85.5	72.1	96.6	82.4	68.5
