Three-channel CMOS transimpedance amplifier for LiDAR sensor receiver

doi:10.23919/JSEE.2023.000058

Journal of Systems Engineering and Electronics ›› 2024, Vol. 35 ›› Issue (1): 74-80.doi: 10.23919/JSEE.2023.000058

• ELECTRONICS TECHNOLOGY • Previous Articles

Three-channel CMOS transimpedance amplifier for LiDAR sensor receiver

Ruqing LIU(), Jingguo ZHU(), Yan JIANG(), Feng LI(), Chenghao JIANG, Zhe MENG

¹ Photoelectric R & D Center, Academy of Opto-Electronics, Chinese Academy of Sciences, Beijing 100094, China

Received:2021-11-08 Online:2024-02-18 Published:2024-03-05
Contact: Jingguo ZHU E-mail:liuruqing@ime.ac.cn;zhujingguo@ime.ac.cn;Jiangyan@ime.ac.cn;lifeng1@ime.ac.cn
About author:
LIU Ruqing was born in 1987. She received her M.S. degree in microeletronics and solid state electronics from Beijing Institute of Technology. She is an engineer in Microelectronics Research Institute, Chinese Academy of Sciences. Her research interest is LiDAR field progrmmable gate array signal processing. E-mail: liuruqing@ime.ac.cn

ZHU Jingguo was born in 1977. He received his Ph.D. degree in computer application technology from the Chinese Academy of Sciences, where he is the leader of the lidar team. His research interests are lidar, intelligent sensing, and photoelectric countermeasure. E-mail: zhujingguo@ime.ac.cn

JIANG Yan was born in 1985. He received his M.S. degree in microeletronics and solid state electronics from Beijing Institute of Technology. He is an engineer of Microelectronics Research Institute, Chinese Academy of Sciences. His research interest is lidar signal processing. E-mail: jiangyan@ime.ac.cn

LI Feng was born in 1976. He received his Ph.D. degree in microeletronics and solid state electronics from Beihang University. He is an associate researcher in the Institute of Microelectronics, Chinese Academy of Sciences. His research interests are signal detection, embedded system, and electromechanical control. E-mail: lifeng1@ime.ac.cn

JIANG Chenghao was born in 1987. He received his Ph.D. degree in instrument science and technology from Changchun University of Science and Technology. He is a researcher in the Institute of Microelectronics of Chinese Academy of Sciences. His research interests are laser detection technology and visual detection. E-mail: Jiangchenghao@ime.ac.cn

MENG Zhe was born in 1979. He received his M.S. degree in software engineering from Chinese Academy of Sciences. He is an engineer in Institute of Microelectronics of the Chinese Academy of Sciences. His research interests are software engineering. E-mail: mengzhe@ime.ac.cn

Abstract

Abstract:

For time-of-flight (TOF) light detection and ranging (LiDAR), a three-channel high-performance transimpedance amplifier (TIA) with high immunity to input load capacitance is presented. A regulated cascade (RGC) as the input stage is at the core of the complementary metal oxide semiconductor (CMOS) circuit chip, giving it more immunity to input photodiode detectors. A simple smart output interface acting as a feedback structure, which is rarely found in other designs, reduces the chip size and power consumption simultaneously. The circuit is designed using a 0.5 μm CMOS process technology to achieve low cost. The device delivers a 33.87 dB? transimpedance gain at 350 MHz. With a higher input load capacitance, it shows a ?3 dB bandwidth of 461 MHz, indicating a better detector tolerance at the front end of the system. Under a 3.3 V supply voltage, the device consumes 5.2 mW, and the total chip area with three channels is 402.8×597.0 μm² (including the test pads).

Key words: transimpedance amplifier (TIA), three-channel, regulated cascade (RGC), light detection and ranging (LiDAR)

Ruqing LIU, Jingguo ZHU, Yan JIANG, Feng LI, Chenghao JIANG, Zhe MENG. Three-channel CMOS transimpedance amplifier for LiDAR sensor receiver[J]. Journal of Systems Engineering and Electronics, 2024, 35(1): 74-80.

Figures/Tables 14

Fig 1

Fig 2

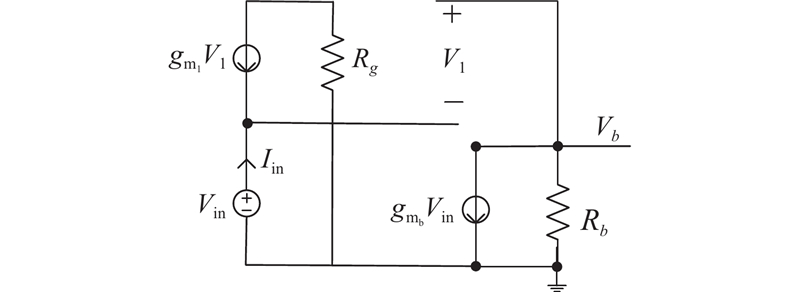

Fig 3

Fig 4

Fig 5

Fig 6

Table 1

Fig 7

Fig 8

Fig 9

Fig 10

Fig 11

Fig 12

Table 2

References 23

1	YE L C, ZHANG G F, YOU Z, et al. A 2D resonant MEME scanner with an ultracompact wedge-like multiplied angle amplification for miniature LIDAR application. Proc. of the IEEE Conference on Sensors, 2016. DOI: 10.1109/ICSENS.2016.7808932.
2	YU Y, LIU B, CHEN Z, et al Photon counting LIDAR based on true random coding. Sensors, 2020, 20 (11): 3331- 3338. doi: 10.3390/s20113331
3	RAFAELA B S, SOUZA-FILHO P W M, SIMARD M, et al Improving mangrove above-ground biomass estimates using LiDAR. Estuarine, Coastal and Shelf Science, 2020, 236, 106585. doi: 10.1016/j.ecss.2020.106585
4	KIM S G, JUNG S H, YING X, et al A 1.8 Gb/s/ch 10 mw/ch −23dB crosstalk eight-channel transimpedance amplifier array for LADAR systems. Proc. of the International SOC Design Conference, 2013, 115- 118.
5	NGO T H, KIM C H, KWON Y J, et al Wideband receiver for a three-dimensional ranging LADAR system. IEEE Trans. on Circuits and Systems, 2013, 60 (2): 448- 456. doi: 10.1109/TCSI.2012.2215800
6	SUDHAKAR P, SHEELA K A, SATYANARAYANA M. Imaging lidar system for night vision and surveillance applications. Proc. of the 4th International Conference on Advanced Computing and Communication Systems, 2017. DOI: 10.1109/ICACCS.2017.8014690.
7	KURTTI S, NISSINEN J, KOSTAMOVAARA J A wide dynamic range CMOS laser radar receiver with a time-domain walk error compensation scheme. IEEE Trans. on Circuits and Systems, 2017, 64 (3): 550- 561. doi: 10.1109/TCSI.2016.2619762
8	CHEN J D, HO H L, TSAY H L, et al 3D chaos lidar system with a pulsed master oscillator power amplifier scheme. Optics Express, 2021, 29 (17): 27871- 27881. doi: 10.1364/OE.433036
9	STROTKSMP M, ELSEN F, LHRING J, et al Two stage innoslab amplifier for energy scaling from 100 to >500mJ for future LIDAR applications. Applied Optics, 2017, 56 (10): 2886- 2892. doi: 10.1364/AO.56.002886
10	ZHU Y D, YANG J X, ZHANG X X, et al Performance improvement of spaceborne carbon dioxide detection IPDA LIDAR using linearty optimized amplifier of photo-detector. Remote Sensing, 2021, 13 (10): 2007.
11	HONG C, KIM S H, KIM J H, et al A linear-mode LiDAR sensor using a multi-channel CMOS transimpedance amplifier array. IEEE Trans. on Sensors, 2018, 18 (17): 7032- 7040. doi: 10.1109/JSEN.2018.2852794
12	RUOTSALAINEN T, PALOJARVI P, KOSTAMOVAARA J A wide dynamic range receiver channel for a pulsed time-of-flight laser radar. Journal of Solid-State Circuits, 2001, 36 (8): 1228- 1238. doi: 10.1109/4.938373
13	NICLASS C, SOGA M, MATSUBARA H, et al A 0.18µm CMOS SOC for a 100-m-range 10-frame/s 200×96-pixel time-of-flight depth sensor. IEEE Journal of Solid-State Circuits, 2014, 49 (1): 315- 330.
14	ZAND B, PHANG K, JOHNS D A A transimpedance amplifer with DC-coupled differential photodiode current sensing for wireless optical communications. Proc. of the IEEE Custom Intergrated Circuits Conferencs, 2001, 455- 458.
15	CHO H S, KIM C H, LEE S G A high-sensitivity and low-walk error LADAR receiver for military application. IEEE Trans. on Circuits and Systems, 2014, 61 (10): 3007- 3015. doi: 10.1109/TCSI.2014.2327282
16	ZHOU Y X, ZHAO Y, YANG J A broadband AGC transimpedance amplifier for automotive LiDAR. Microelectronics, 2019, 49 (6): 755- 759.
17	WANG X Y, MA R, LI D A low walk error analog front-end circuit with intensity compensation for direct ToF LiDAR. IEEE Trans. on Circuits and Systems I: Regular Papers, 2020, 67 (12): 4309- 4321.
18	CHENG L, RUI B, SHAFIK A, et al Silicon photonic transceiver circuits with microring resonator bias-based wavelength stabilization in 65 nm CMOS. IEEE Journal of Solid-State Circuits, 2014, 49 (6): 1419- 1436. doi: 10.1109/JSSC.2014.2321574
19	TSAI C M A 40 mW 3 Gb/s self-compensated differential transimpedance amplifier with enlarged input capacitance tolerance in 0. 18µm CMOS technology. IEEE Journal of Solid-State Circuits, 2009, 44 (10): 2671- 2677.
20	YANG Y X, GAO J B, SONG H Z et. al. Near-infrared array receiver for real-time 3D imaging application. Proc. of the 4th Optoelectronics Global Conference, 2019, 89- 93.
21	LIU R Q, JIANG Y, JIANG C H, et al Amplifying circuit interface model for lidar signal processing system. Journal of Electronics & Information Technology, 2020, 42 (7): 1636- 1642.
22	HAO Z, RUI M, LIU M, et al A linear dynamic range receiver with timing discrimination for pulsed TOF imaging LADAR application. IEEE Trans. on Instrumentation and Measurement, 2018, 67 (11): 2684- 2691. doi: 10.1109/TIM.2018.2826860
23	MA R, LIU M, ZHENG H, et al A 77 dB dynamic range low power variable-gain transimpedance amplifier for linear LADAR. IEEE Journal of Circuits and Systems, 2018, 65 (2): 171- 175.

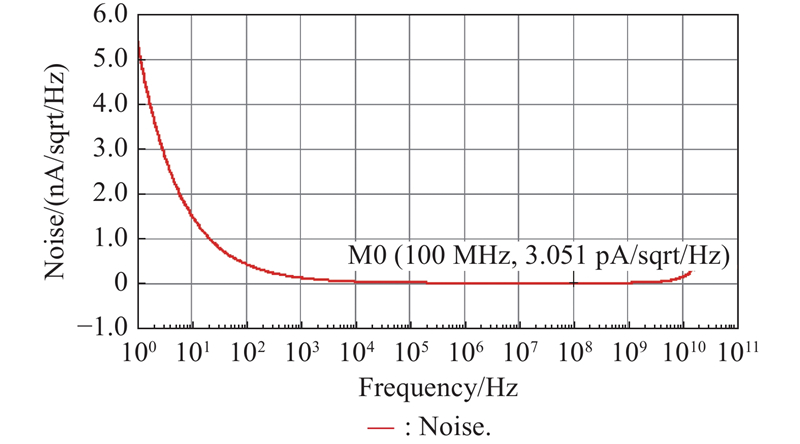

Channel	Input C_s/pF	Bandwidth/ MHz	Output voltage/V	Noise/ (pA·s⁻¹)	Gain/ dBΩ
1	5	739.9	0.4−2	3.051	41.01
2	5	750.7	0.4−2	3.058	40.09
3	5	827.7	0.4−2	3.049	41.03
1	10	612.8	0.5−2	3.749	40.09

Channel	The proposed circuit	[12]	[22]	[23]
Input C_s/pF	5	5	1.5	2
f_−3dB/MHz	461	170	150	50
Gain/dBΩ	33.92	113	106	106
Power/mW	5.2	250	165	12.6
Chip size/mm²	0.4×0.6	3×3	0.9	−
