Combat situation suppression of multiple UAVs based on spatiotemporal cooperative path planning

doi:10.23919/JSEE.2023.000119

Abstract

Abstract:

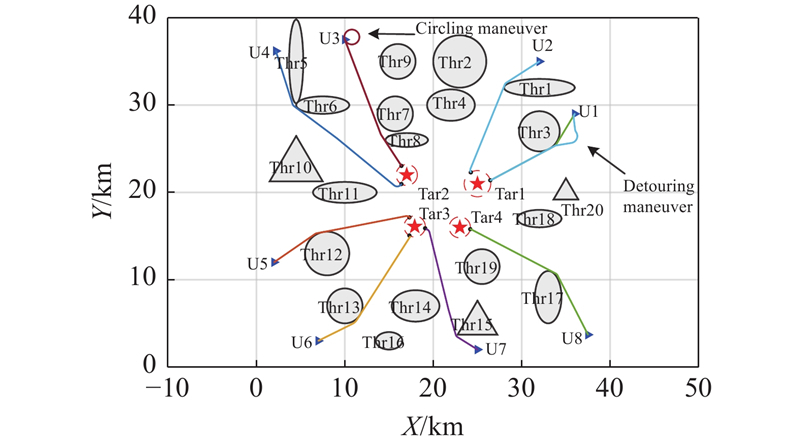

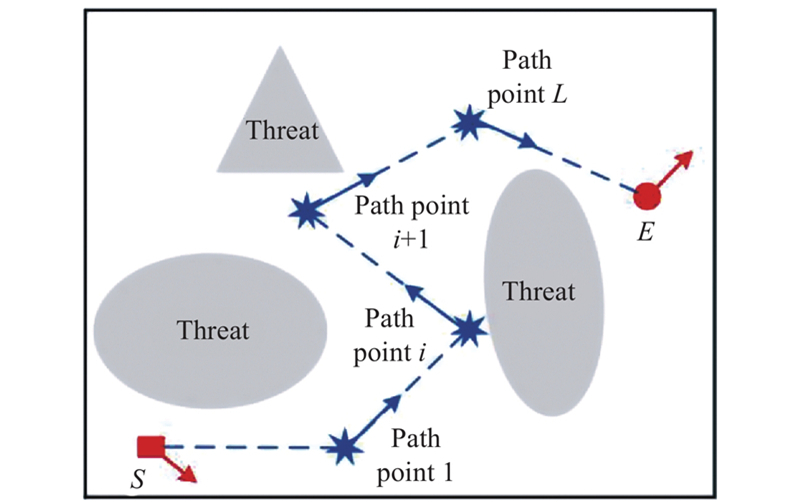

Aiming at the suppression of enemy air defense (SEAD) task under the complex and complicated combat scenario, the spatiotemporal cooperative path planning methods are studied in this paper. The major research contents include optimal path points generation, path smoothing and cooperative rendezvous. In the path points generation part, the path points availability testing algorithm and the path segments availability testing algorithm are designed, on this foundation, the swarm intelligence-based path point generation algorithm is utilized to generate the optimal path. In the path smoothing part, taking terminal attack angle constraint and maneuverability constraint into consideration, the Dubins curve is introduced to smooth the path segments. In cooperative rendezvous part, we take estimated time of arrival requirement constraint and flight speed range constraint into consideration, the speed control strategy and flight path control strategy are introduced, further, the decoupling scheme of the circling maneuver and detouring maneuver is designed, in this case, the maneuver ways, maneuver point, maneuver times, maneuver path and flight speed are determined. Finally, the simulation experiments are conducted and the acquired results reveal that the time-space cooperation of multiple unmanned aeriel vehicles (UAVs) is effectively realized, in this way, the combat situation suppression against the enemy can be realized in SEAD scenarios.

Key words: heterogeneous unmanned aeriel vehicles (UAVs), situation suppression, cooperative rendezvous, maneuver strategy, multiple constraints

Lei HU, Guoxing YI, Yi NAN, Hao WANG. Combat situation suppression of multiple UAVs based on spatiotemporal cooperative path planning[J]. Journal of Systems Engineering and Electronics, 2023, 34(5): 1191-1210.

Figures/Tables 31

Fig 1

Fig 2

Fig 3

Table 1

Fig 4

Fig 5

Table 2

Fig 6

Fig 7

Fig 8

Fig 9

Fig 10

Fig 11

Table 3

Fig 12

Fig 13

Table 4

Table 5

Table 6

Table 7

Fig 14

Fig 15

Fig 16

Fig 17

Fig 18

Table 8

Fig 19

Fig 20

Fig 21

Fig 22

Fig 23

References 38

1	HUANG H, WU K, WANG H F, et al Path planning of UAV low altitude penetration based on improved moth-flame optimization. Journal of Chinese Inertial Technology, 2021, 29 (2): 256- 263.
2	MA C Y, FENG Z Q, ZHENG X M Development of bionic UAVs cluster technology. Transactions of Nanjing University of Aeronautics and Astronautics, 2018, 35 (1): 1- 8.
3	KHAN A, AFTAB F, ZHANG Z S UAPM: an urgency aware packet management for disaster management using flying ad-hoc networks. China Communications, 2019, 16 (11): 167- 182.
4	YANG Q Q, GAO Y Y, GUO Y, et al. Target search path planning for naval battle field based on deep reinforcement learning. Systems Engineering and Electronics, 2022, 44(11): 3486−3495. (in Chinese)
5	YAN Z P, BAI R, CHI D N, et al Formation coordination control of multi-UUV for object searching. Computer Measurement & Control, 2013, 21 (6): 1532- 1536.
6	JAVIER A M, BAKER S, RUS D Multi-robot formation control and object transport in dynamic environments via constrained optimization. The International Journal of Robotics Research, 2017, 36 (9): 1000- 1021. doi: 10.1177/0278364917719333
7	MAZA I, CABALLERO F, CAPITAN J, et al Experimental results in multi-UAV coordination for disaster management and civil security applications. Journal of Intelligent and Robotic Systems, 2011, 61 (1/4): 563- 585. doi: 10.1007/s10846-010-9497-5
8	WU W N, GUAN Y Z, GUO J F, et al Research on cooperative task assignment method used to the mission SEAD with real constraints. Control and Decision, 2017, 32 (9): 1574- 1582.
9	XIANG X J, YAN C, WANG C, et al Coordination control method for fixed-wing UAV formation through deep reinforcement learning. Acta Aeronautica et Astronautica Sinica, 2021, 42 (4): 420- 433.
10	TSOURDOS A, WHITE B, SHANMUGAVEL M, et al. Cooperative path planning of unmanned aerial vehicles. ZHOU Z, WANG X. trans. Beijing: National Defence Industry Press, 2013. (in Chinese)
11	LI X Q, MA R, ZHANG S, et al Improved design of ant colony algorithm and its application in path planning. Acta Aeronautica et Astronautica Sinica, 2020, 41 (S2): 213- 219.
12	WU W H, GUO X F, ZHOU S Y Dynamic route planning based on improved constrained differential evolution algorithm. Control and Decision, 2020, 35 (10): 2381- 2390.
13	HU L, YI G X, HUANG C, et al Research on dynamic weapon target assignment based on cross-entropy. Mathematical Problems in Engineering, 2020, 2020, 1- 13.
14	SUN X L. Research on mission planning for unmanned aerial vehicles based on multi-stage path prediction. Harbin: Harbin Institute of Technology, 2015.
15	WU K, TAN S C Path planning of UAVs based on improved whale optimization algorithm. Acta Aeronautica et Astronautica Sinica, 2020, 41 (2): 107- 114.
16	ZHEN Z Y, ZHU P, XUE Y X, et al Distributed intelligent self-organized mission planning of multi-UAV for dynamic targets cooperative search-attack. Chinese Journal of Aeronautics, 2019, 32 (12): 2706- 2716. doi: 10.1016/j.cja.2019.05.012
17	ZHEN Z Y, XING D J, GAO C Cooperative search-attack mission planning for multi-UAV based on intelligent self-organized algorithm. Aerospace Science & Technology, 2018, 76, 402- 411.
18	PANG Q W, HU Y J, LI W G Path planning algorithm for multi-UAVs cooperative reconnaissance on multiple targets. Journal of Chinese Inertial Technology, 2019, 27 (3): 340- 348.
19	CHEN Y B, YU J Q, MEI Y, et al Modified central force optimization (MCFO) algorithm for 3D UAV path planning. Neurocomputing, 2016, 171 (1): 878- 888.
20	LI W G, HU Y J, PANG Q W, et al Track planning of multi-UAV cooperative reconnaissance based on improved genetic algorithm. Journal of Chinese Inertial Technology, 2020, 28 (2): 248- 255.
21	LI W G, SUN S Y, LI J Z, et al UAV dynamic path planning algorithm based on segmentated optimization RRT. Systems Engineering and Electronics, 2018, 40 (8): 1786- 1793.
22	LAVALLE S M, KUFFNER J J. Randomized kino-dynamic planning. International Journal of Robotics Research, 1999, 15(5): 378−400.
23	KOTHARI M, POSTLETHWAITE I A probabilistically robust path planning algorithm for UAVs using rapidly-exploring random trees. Journal of Intelligent and Robotic Systems, 2013, 71 (2): 231- 253. doi: 10.1007/s10846-012-9776-4
24	PERSSON S M, SHARF I. Sampling-based A* algorithm for robot path-planning. The International Journal of Robotics Research, 2014, 33(13): 1683−1708.
25	SINGH Y, SHARMA S, SUTTON R, et al. A constrained A* approach towards optimal path planning for an unmanned surface vehicle in a maritime environment containing dynamic obstacles and ocean currents. Ocean Engineering, 2018, 168(1): 187−201.
26	KARAMEN S, FRAZZOLI E Sampling-based algorithms for optimal motion planning. The International Journal of Robotics Research, 2011, 30 (7): 846- 894. doi: 10.1177/0278364911406761
27	JEONG I B, LEE S J, KIM J H Quick-RRT: triangular inequality-based implementation of RRT with improved initial solution and convergence rate. Expert Systems with Applications, 2019, 123, 82- 90. doi: 10.1016/j.eswa.2019.01.032
28	OH H, KIM S, SHIN H S, et al Rendezvous and standoff target tracking guidance using differential geometry. Journal of Intelligent and Robotic Systems, 2013, 69 (4): 389- 405.
29	MANATHARA J G, GHOSE D Rendezvous of multiple UAVs with collision avoidance using consensus. Journal of Aerospace Engineering, 2012, 25 (4): 480- 489. doi: 10.1061/(ASCE)AS.1943-5525.0000145
30	MCLAIN T W, BEARD R W Coordination variables, coordination functions, and cooperative timing missions. Journal of Guidance, Control & Dynamics, 2005, 28 (1): 150- 161.
31	SHAN W Z, CUI N G, HUANG B, et al Multiple UAV cooperative path planning based on PSO-HJ method. Journal of Chinese Inertial Technology, 2020, 28 (1): 122- 128.
32	DUAN H B, ZHANG X Y, WU J Max-min adaptive ant colony optimization approach to multi-UAVs coordinated trajectory replanning in dynamic and uncertain environments. Journal of Bionic Engineering, 2009, 6 (2): 161- 173. doi: 10.1016/S1672-6529(08)60113-4
33	SUN X L, MENG Y L, QI N M, et al Cooperative path planning for rendezvous of unmanned aerial vehicles. Robot, 2015, 37 (5): 621- 627.
34	FOSSEN T I, PETTERSEN K Y, GALEAZZI R Line-of-sight path following for Dubins paths with adaptive sideslip compensation of drift forces. IEEE Trans. on Control Systems Technology, 2015, 23 (2): 820- 827. doi: 10.1109/TCST.2014.2338354
35	DUBINS L E On curves of minimal length with a constraint on average curvature, and with prescribed initial and terminal positions and tangents. American Journal of Mathematics, 1957, 79, 497- 516. doi: 10.2307/2372560
36	HU L. Research on combat effectiveness algorithm of flying weapon under dynamic condition. Harbin: Harbin Institute of Technology, 2018. (in Chinese)
37	KUFFNER J J, LAVALLE S M. RRT-connect: an efficient approach to single-query path planning. Proc. of the IEEE International Conference on Robotics and Automation, 2000: 995−1001.
38	LI Y, XU D, ZHOU C Cooperation path planning of dual-robot based on self-adaptive stepsize RRT. Transactions of the Chinese Society of Agricultural Machinery, 2019, 50 (3): 358- 367.

Type of threat ${s_{{\rm{Thr}}} }$	Size of threat ${r_{{\rm{Thr}}} }$
Regular triangle	Side length
Circle	Radius
Ellipse	Semi-minor axis，semimajor axis is $\sigma {r_{{\rm{Thr}}} }$ ( $ \sigma $ >1)

Path	Length/km
RSR	5.7092
RSL	0.75918
LSR	3.1962
LSL	5.7902
RLR	4.8948
LRL	3.6362

Algorithm	Path length/km	Number of nodes	Simulation time/s
IBats-based PPG	43.54	1	3.16
IPSO-based PPG	43.22	1	4.87
RRT	61.58	38	3.24
BERRT	61.11	41	2.77
SAS-RRT	62.53	36	2.86
RRT star	45.93	8	5.19

Parameter	Target code
Parameter	Target1	Target2	Target3	Target4
Location/km	(25,21)	(17,22)	(17.9,16.1)	(23,16)
Attack radius/km	1.5	1.2	1.2	1.2
Requirement	2	2	3	1

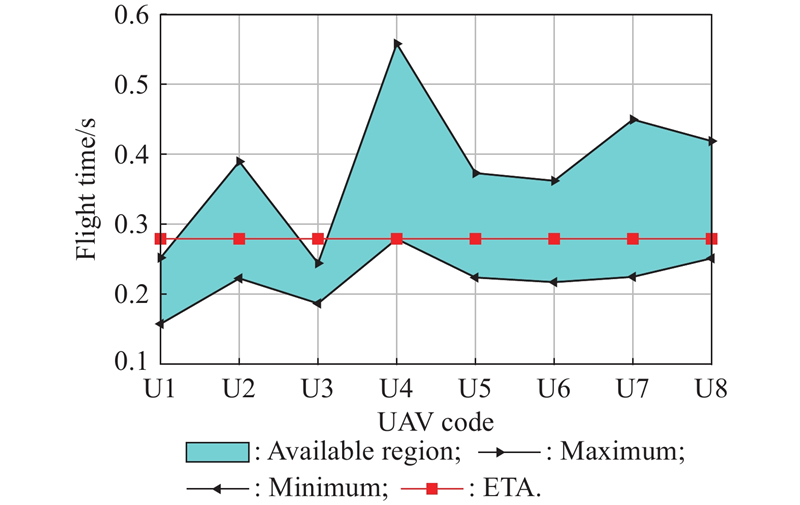

Parameter	UAV code
Parameter	U1	U2	U3	U4	U5	U6	U7	U8
Initial location/km	(36,29)	(32,35)	(10,37.5)	(2.2,36.2)	(2,12)	(7,3)	(25,2)	(37.5,3.7)
Turning rate/(rad/s)	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1
Speed range/(m/s)	[50,80]	[40,70]	[65,85]	[40,80]	[45,75]	[45,75]	[35,70]	[45,75]
