A method to realize NAVSOP by utilizing GNSS authorized signals

doi:10.23919/JSEE.2021.000105

Journal of Systems Engineering and Electronics ›› 2021, Vol. 32 ›› Issue (5): 1232-1245.doi: 10.23919/JSEE.2021.000105

• RELIABILITY • Previous Articles Next Articles

A method to realize NAVSOP by utilizing GNSS authorized signals

Ying YUAN^1,²(), Feng YU^1,^2,*(), Yang CHEN^1,²(), Niancheng ZHANG^1,²()

¹ Key Laboratory of Space Photoelectric Detection and Perception, Nanjing 210016, China
² College of Aeronautics, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, China

Received:2020-12-04 Online:2021-10-18 Published:2021-11-04
Contact: Feng YU E-mail:yuanying123@nuaa.edu.cn;yufeng@nuaa.edu.cn;1009914555@qq.com;1120094312@qq.com
About author:|YUAN Ying was born in 1997. He received his B.S. degree in the College of Aeronautics from Nanjing University of Aeronautics and Astronautics in 2017. His research interests include autonomous navigation, artificial neural network and integrated navigation. E-mail: 2254940674@qq.com||YU Feng was born in 1980. He is now a professor at the College of Aeronautics from Nanjing University of Aeronautics and Astronautics. His research interests include micro-nano satellite control technology, on-orbit service, navigation and positioning. E-mail: yufeng@nuaa.edu.cn||CHEN Yang was born in 1998. He received his B.S. degree in the College of Aeronautics from Nanjing University of Aeronautics and Astronautics in 2020. His research interests include visual navigation and 3D modeling. E-mail: 1009914555@qq.com||ZHANG Niancheng was born in 1998. He received his B.S. degree in the College of Civil Aviation from Nanjing University of Aeronautics and Astronautics in 2020. His research interests include X-ray pulsar navigation and deep space detection. E-mail: 1120094312@qq.com
Supported by:
This work was supported by the National Natural Science Foundation of China (61673212)

Abstract

Abstract:

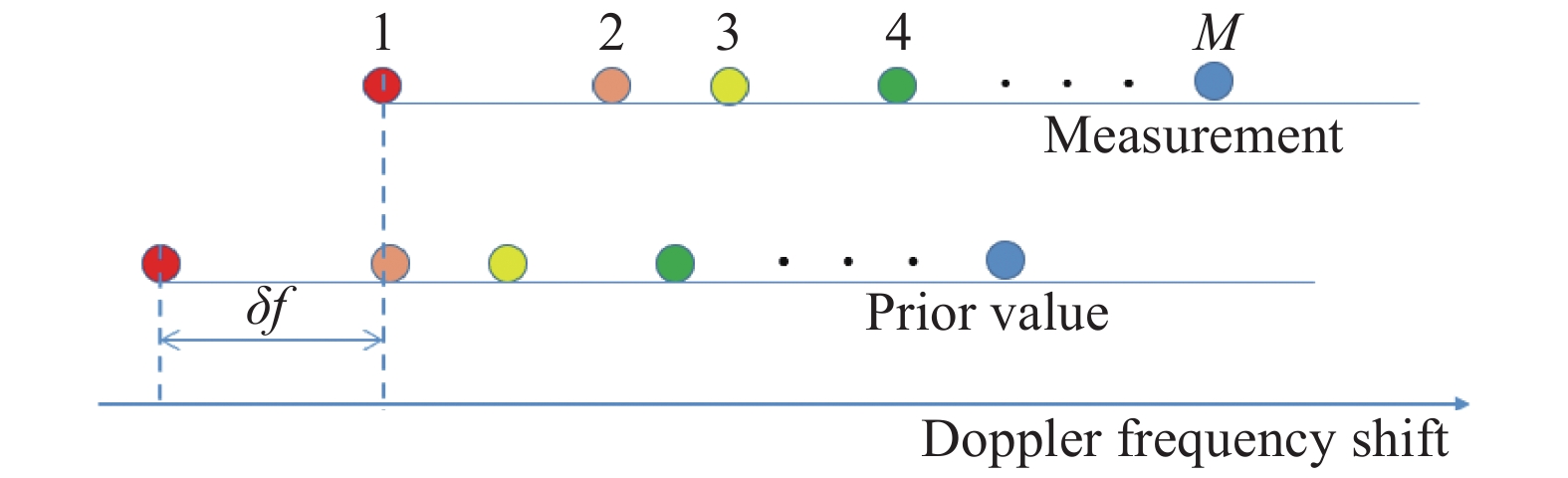

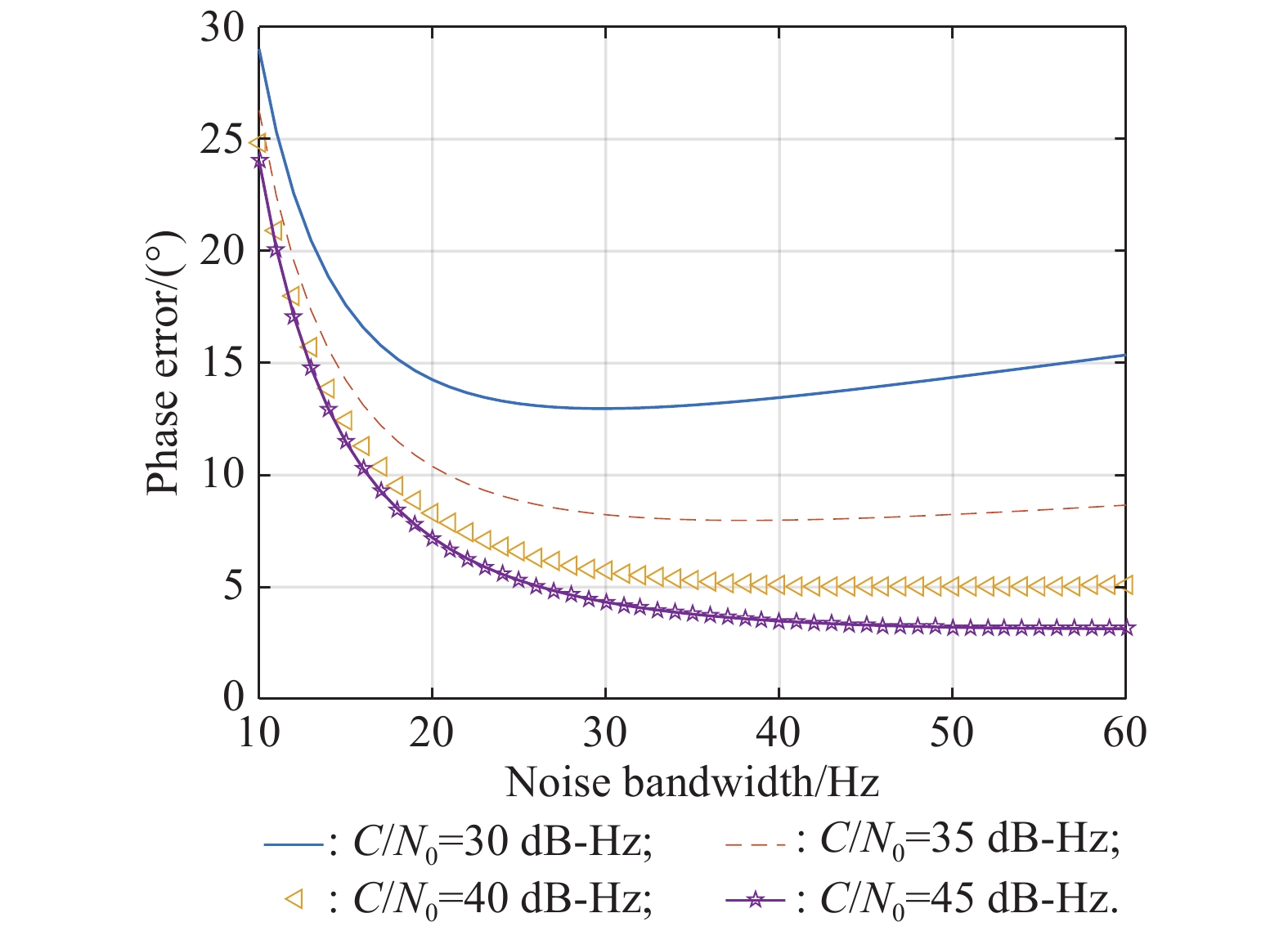

Navigation via signals of opportunity (NAVSOP) is able to realize positioning by making use of hundreds of different signals that are all around us. A method to realize NAVSOP for low earth orbit (LEO) satellites is proposed in this paper, in which the global navigation satellite system (GNSS) authorized signals are utilized as the signal of opportunity (SOP). At first, the carrier recovery technique is studied under the premise that the pseudo-code is unknown. Secondly, a method based on characteristics of Doppler frequency shift is proposed to recognize the navigation satellites. Thirdly, the extended Kalman filter (EKF) is utilized to estimate the orbital parameters by using carrier phase measurements. Finally, the proposed method is evaluated by using signals generated by a satellite navigation data simulator. The simulation results show that the proposed method can successfully realize navigation via GNSS authorized signals.

Key words: navigation via signals of opportunity (NAVSOP), codeless technique, carrier recovery, satellite recognition, orbit determination

Ying YUAN, Feng YU, Yang CHEN, Niancheng ZHANG. A method to realize NAVSOP by utilizing GNSS authorized signals[J]. Journal of Systems Engineering and Electronics, 2021, 32(5): 1232-1245.

Figures/Tables 19

Fig 1

Fig 2

Fig 3

Fig 4

Fig 5

Fig 6

Fig 7

Fig 8

Fig 9

Fig 10

Fig 11

Fig 12

Fig 13

Fig 14

Fig 15

Fig 16

Fig 17

Table 1

Fig 18

References 26

1	MERRY L A, FARAGHER R M, SCHEDING S Comparison of opportunistic signals for localisation. IFAC Proceedings, 2010, 43 (16): 109- 114.
2	HUANG G M, JING T, TIAN W Survey on navigation via signal of opportunity. Control and Decision, 2019, 34 (6): 1121- 1131.
3	ALSHAMAA D, MOURAD-CHEHADE F, HONEINE P Tracking of mobile sensors using belief functions in indoor wireless networks. IEEE Sensors, 2017, 18 (1): 310- 319.
4	CHEN L, THEVENON P, SECO-GRANADOS G, et al Analysis on the TOA tracking with DVB-T signals for positioning. IEEE Trans. on Broadcasting, 2016, 62 (4): 957- 961. doi: 10.1109/TBC.2016.2606939
5	BORENOVIC M, NESKOVIC A, NESKOVIC N Vehicle positioning using GSM and cascade-connected ANN structures. IEEE Trans. on Intelligent Transportation Systems, 2013, 14 (1): 34- 46. doi: 10.1109/TITS.2012.2207116
6	WANG Y F, AI H J, TU W P Wi-Fi fingerprinting clustering for indoor place of interest positioning. Journal of Computer Applications, 2016, 36 (2): 488- 491.
7	CHEN L, YANG L L, YAN J, et al Joint wireless positioning and emitter identification in DVB-T single frequency networks. IEEE Trans. on Broadcasting, 2017, 63 (3): 577- 582. doi: 10.1109/TBC.2017.2704422
8	SECO-GRANADOS G, LOPEZ-SALCEDO J A, JIMENEZ-BANOS D, et al Challenges in indoor global navigation satellite systems: unveiling its core features in signal processing. IEEE Signal Processing Magazine, 2012, 29 (2): 108- 131. doi: 10.1109/MSP.2011.943410
9	ZENG Q H, WANG J X, MENG Q, et al Seamless pedestrian navigation methodology optimized for indoor/outdoor detection. IEEE Sensors Journal, 2017, 18 (1): 363- 374.
10	LIU J, CAO C Development status and trend of global navigation satellite system. Journal of Navigation and Positioning, 2020, 8 (1): 1- 8.
11	LI Z D, KANG C B, YIN Q, et al. The status and trend of GPS III. Proc. of the China Satellite Navigation Conference, 2020: P228.4. (in Chinese)
12	MA J W The research and implement of codeless or semi-codeless techniques on GPS receiver. Science and Technology Information, 2014, 102 (12): 165- 166.
13	WOO K T Optimum semi-codeless carrier phase tracking of L2. Navigation, 2000, 47 (2): 82- 99. doi: 10.1002/j.2161-4296.2000.tb00204.x
14	LIU Y J, ZHEN S C, HAN Y C, et al Research of GPS countermeasures technique in navigation warfare. Electronic Information Warfare Technology, 2002, 17 (4): 33- 37.
15	WANG F, LIU X, ZHOU H R Challenge and countermeasure for navigation warfare. Command Information System and Technology, 2014, 5 (4): 20- 25.
16	LU H, YU F, LIU Y, et al Codeless carrier frequency initial value estimation and navigation satellite recognition. Systems Engineering and Electronics, 2016, 38 (10): 2361- 2366.
17	GRAMLING C J, LONG A C Autonomous navigation using the TDRSS onboard navigation system (TONS). Advances in Space Research, 1995, 16 (12): 77- 80. doi: 10.1016/0273-1177(95)98784-L
18	GRAMLING C J, HART R C Onboard configuration and operation of the TDRSS onboard navigation system (TONS). Advances in the Astronautical Sciences, 1992, 78, 3- 20.
19	WANG L, JIANG C, KUANG L, et al. TDRSS scheduling algorithm for non-uniform time-space distributed missions. Proc. of the IEEE Global Communications Conference, 2017. DOI: 10.1109/GLOCOM.2017.8254559.
20	AURIOL A, TOURAIN C DORIS system: the new age. Advance in Space Research, 2010, 46 (12): 1484- 1496. doi: 10.1016/j.asr.2010.05.015
21	MOREAUX G, LEMOINE F G, CAPDEVILLE H, et al The International DORIS Service contribution to the 2014 realization of the International Terrestrial Reference Frame. Advances in Space Research, 2016, 58 (12): 2479- 2504. doi: 10.1016/j.asr.2015.12.021
22	CHEN P, YAO Y B, YAO W Q Global ionosphere maps based on GNSS, satellite altimetry, radio occultation and DORIS. GPS Solutions, 2017, 21 (2): 639- 650. doi: 10.1007/s10291-016-0554-9
23	DONG X R. GNSS single frequency software receiver development and applications. Beijing: National Defense Industry Press, 2008. (in Chinese)
24	WANG H N. Principles and applications of GPS navigation. 2nd ed. Beijing: Science Press, 2005.
25	LIU J Y. The theory and application of navigation system. Xi’an: Northwestern Polytechnical University Press, 2010. (in Chinese)
26	YANG J, inventor; XU F, assignee. A method to judge lock-lose for GPS. China patent CN102176034A. 2011 March 9. (in Chinese)

Moment	1	2	3	4	5
Optimal estimation of $ \delta \hat f $ /Hz	2021	2019	2021	2006	2028
Mean matching offset/Hz	0.4989	0.3924	0.2296	0.2253	0.0694
Recognition number	10	10	8	11	10
Recognition rate/%	90.91	90.91	72.73	100	90.91
