Suppression of the G-sensitive drift of laser gyro in dual-axis rotational inertial navigation system

doi:10.23919/JSEE.2021.000071

Journal of Systems Engineering and Electronics ›› 2021, Vol. 32 ›› Issue (4): 822-830.doi: 10.23919/JSEE.2021.000071

• ELECTRONICS TECHNOLOGY • Previous Articles Next Articles

Suppression of the G-sensitive drift of laser gyro in dual-axis rotational inertial navigation system

Xudong YU*(), Zichao WANG(), Huiying FAN(), Guo WEI(), Lin WANG()

¹ College of Advanced Interdisciplinary Studies, National University of Defense Technology, Changsha 410073, China

Received:2020-11-12 Online:2021-08-18 Published:2021-09-30
Contact: Xudong YU E-mail:wind0909@163.com;w731730602@163.com;13404676477@163.com;nudtweiguo@163.com;wanglinshanda@163.com
About author:|YU Xudong was born in 1982. He received his B.S. and Ph.D. degrees in optical engineering from the National University of Defense Technology, in 2001 and 2011, respectively. He is currently an associate researcher in the National University of Defense Technology. His research interests include signal processing, ring laser gyro and inertial navigation system. E-mail: wind0909@163.com||WANG Zichao was born in 1997. He received his B.S. degree in optical engineering from the National University of Defense Technology, in 2019. He is currently a postgraduate student in the National University of Defense Technology. His research interests include ring laser gyro and inertial navigation system. E-mail: w731730602@163.com||FAN Huiying was born in 1996. He received his B.S. degree in information and communication engineering from the National University of Defense Technology, in 2018. He is currently working toward his M.S. degree in optical engineering. His research interests include strapdown inertial navigation system and rotation modulation technology. E-mail: 13404676477@163.com||WEI Guo was born in 1985. He received his B.S. degree in measurement-control technology and instrument from Southeast University and his Ph.D. degree in optical engineering from the National University of Defense Technology, in 2003 and 2013, respectively. He is currently an associate professor in the National University of Defense Technology. His research interests include ring laser gyro, inertial measurement and integrated navigation system. E-mail: nudtweiguo@163.com||WANG Lin was born in 1987. He received his B.S. and Ph.D. degrees in control science and engineering from the National University of Defense Technology, Changsha, China, in 2013 and 2018, respectively. He is currently an associate researcher in the National University of Defense Technology. His research interests include inertial navigation and integrated navigation system. E-mail: wanglinshanda@163.com
Supported by:
This work was supported by the National Natural Science Foundation of China (61503399)

Abstract

Abstract:

The dual-axis rotational inertial navigation system (INS) with dithered ring laser gyro (DRLG) is widely used in high precision navigation. The major inertial sensor errors such as drift errors of gyro and accelerometer can be averaged out, but the G-sensitive drifts of laser gyro cannot be averaged out by indexing. A 16-position rotational simulation experiment proves the G-sensitive drift will affect the long-term navigation error for the rotational INS quantitatively. The vibration coupling and asymmetric structure of the DRLG are the main errors. A new dithered mechanism and optimized DRLG is designed. The validity and efficiency of the optimized design are conformed by 1 g sinusoidal vibration experiments. An optimized inertial measurement unit (IMU) is formulated and measured experimentally. Laboratory and vehicle experimental results show that the divergence speed of longitude errors can be effectively slowed down in the optimized IMU. In long term independent navigation, the position accuracy of dual-axis rotational INS is improved close to 50%, and the G-sensitive drifts of laser gyro in the optimized IMU are less than 0.000 2 °/h. These results have important theoretical significance and practical value for improving the structural dynamic characteristics of DRLG INS, especially the high-precision inertial system.

Key words: inertial navigation, rotational inertial navigation system (INS), laser gyro, G-sensitive drift

Xudong YU, Zichao WANG, Huiying FAN, Guo WEI, Lin WANG. Suppression of the G-sensitive drift of laser gyro in dual-axis rotational inertial navigation system[J]. Journal of Systems Engineering and Electronics, 2021, 32(4): 822-830.

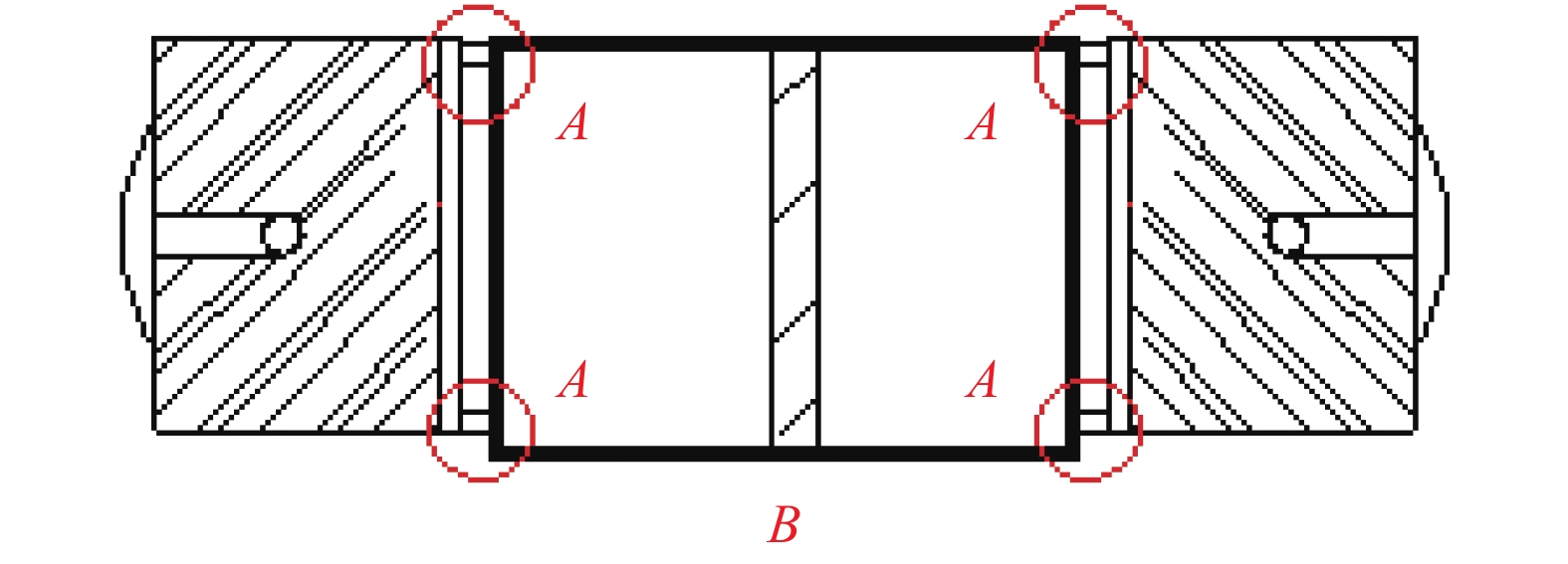

Figures/Tables 16

Fig 1

Fig 2

Fig 3

Fig 4

Fig 5

Fig 6

Fig 7

Fig 8

Fig 9

Fig 10

Fig 11

Fig 12

Fig 13

Fig 14

Fig 15

Table 1

References 23

1	TITTERTON D H, WESTON J L. Strapdown inertial navigation technology. 2nd ed. London: Institution of Engineering and Technology, 2004.
2	FARRELL J A, BARTH M. The global positioning system and inertial navigation. New York: McGraw-Hill, 1998.
3	WEI G, YU X D, LONG X W Novel approach for identifying Z-axis drift of RLG based on GA-SVR model. Journal of Systems Engineering and Electronics, 2014, 25 (1): 115- 121. doi: 10.1109/JSEE.2014.00013
4	LEVINSON E, HORST J, WILLCOCKS M The next generation marine inertial navigator is here now. Proc. of the IEEE Position Location and Navigation Symposium, 1994, 121- 127.
5	LEVINSON E, MAJURE R Accuracy enhancement techniques applied to the marine ring laser inertial navigator (MARLIN). Navigation, 1987, 34, 64- 86. doi: 10.1002/j.2161-4296.1987.tb01490.x
6	GAO Z Y. Electrostatic gyro technologies. Beijing: Tsinghua University Press, 2004. (in Chinese)
7	YUAN B L, LIAO D, HAN S L Error compensation of an optical gyro INS by multi-axis rotation. Measurement Science and Technology, 2012, 23, 025102. doi: 10.1088/0957-0233/23/2/025102
8	WEI G. Research on some key technologies for double-axis rotation inertial navigation system with mechanically dithered ring laser gyro. Changsha, China: National University of Defense Technology, 2013. (in Chinese)
9	WANG L, WANG W, ZHANG Q, et al Self-calibration method based on navigation in high-precision inertial navigation system with fiber optic gyro. Optical Engineering, 2014, 53, 064103. doi: 10.1117/1.OE.53.6.064103
10	REN Q, WANG B, DENG Z H, et al. A multi-position self-calibration method for dual-axis rotational inertia navigation system. Sensors and Actuators A: Physical, 2014, 219: 24–31. (in Chinese)
11	GAO P Y, LI K, WANG L, et al A self-calibration method for tri-axis rotational inertial navigation system. Measurement Science and Technology, 2016, 27, 115009. doi: 10.1088/0957-0233/27/11/115009
12	TUUKKA N, JARI K, SAKU S, et al An enhanced multi-position calibration method for consumer-grade inertial measurement units applied and tested. Measurement Science and Technology, 2010, 21, 105204. doi: 10.1088/0957-0233/21/10/105204
13	JIANG R, YANG G L, CHEN Y J, et al Self-calibration of laser gyro g-dependent bias for dual-axis rotational inertial navigation system. Journal of Chinese Inertial Technology, 2017, 25 (5): 664- 669.
14	ZHENG Z C, HAN S L, ZHENG K F An eight-position self-calibration method for a dual-axis rotational inertial navigation system. Sensors and Actuators A: Physical, 2015, 232, 39- 48. doi: 10.1016/j.sna.2015.05.002
15	YU X D, LONG X W Parametric design of mechanical dither with bimorph piezoelectric actuator for ring laser gyro. International Journal of Applied Electromagnetics and Mechanics, 2015, 47, 305- 312. doi: 10.3233/JAE-140008
16	YU X D, GAO N, XIE Y P, et al Displacement optimization of the path length control transducer for ring laser gyro using finite element method. International Journal of Applied Electromagnetics and Mechanics, 2015, 49, 327- 335. doi: 10.3233/JAE-140136
17	LEE S H, SHON W H, SUH S W Piezoelectric actuators for the correction of optical ray path in the operation of laser gyros. International Jounal of Precision Engineering and Manufacturings, 2011, 12, 91- 96. doi: 10.1007/s12541-011-0011-1
18	TUO Z H. Study on the dither coupled errors and the error restrain methods for the DRLG SINS. Changsha, China: National University of Defense Technology, 2013. (in Chinese)
19	YU X D, XIE Y P, XIONG Z Y, et al Vibration-insensitive optical path length control transducer for ring laser gyro. International Jounal of Precision Engineering and Manufacturings, 2019, 61, 581- 591.
20	MA Y H, YU W, QUAN B X, et al Influence of path length control mirror on dynamic stability of ring laser gyro. Chinese Journal of Laser, 2017, 44, 0601001. doi: 10.3788/CJL201744.0601001
21	LAHHAM J I, WIGENT D J, COLEMAN A L Tuned support structure for structure-borne noise reduction of inertial navigator with dithered ring laser gyros (RLG). Proc of the IEEE Position Location and Navigation Symposium, 2000, 419- 428.
22	LAHHAM J I, BRAZELL J R Acoustic noise reduction in the MK49 Ship’s inertial navigation system (SINS). Proc of the IEEE Position Location and Navigation Symposium, 1992, 32- 39.
23	YU X D, WEI G, LONG X W, et al Finite element analysis and optimization of dither mechanism in dithered ring laser gyroscope. International Jounal of Precision Engineering and Manufacturings, 2013, 14, 415- 421. doi: 10.1007/s12541-013-0057-3

Experiment item	Error item	Group	INS-A	INS-B
Laboratory static navigation (120 h)	East velocity error/ (m/s) (1 $ \sigma $ )	1	0.21	0.19
		2	0.25	0.24
		3	0.27	0.20
	North velocity error/(m/s) (1 $ \sigma $ )	1	0.25	0.21
		2	0.19	0.25
		3	0.31	0.29
	Longitude error/( $ ' $ ) (Max)	1	0.92	0.51
		2	0.87	0.35
		3	1.06	0.42
	Latitude error/( $ ' $ ) (Max)	1	0.35	0.30
		2	0.42	0.51
		3	0.45	0.37
Vehicle navigation (120 h)	East velocity error/(m/s) (1 $ \sigma $ )	1	0.41	0.31
		2	0.23	0.28
		3	0.28	0.35
	North velocity error/(m/s) (1 $ \sigma $ )	1	0.31	0.18
		2	0.32	0.32
		3	0.29	0.29
	Longitude error/( $ ' $ ) (Max)	1	0.94	0.47
		2	0.98	0.43
		3	1.23	0.52
	Latitude error/( $ ' $ ) (Max)	1	0.33	0.34
		2	0.46	0.37
		3	0.38	0.45
