A learning-based flexible autonomous motion control method for UAV in dynamic unknown environments

doi:10.23919/JSEE.2021.000126

Journal of Systems Engineering and Electronics ›› 2021, Vol. 32 ›› Issue (6): 1490-1508.doi: 10.23919/JSEE.2021.000126

收稿日期:2020-12-02 接受日期:2021-11-09 出版日期:2022-01-05 发布日期:2022-01-05

A learning-based flexible autonomous motion control method for UAV in dynamic unknown environments

Kaifang WAN*(), Bo LI(), Xiaoguang GAO(), Zijian HU(), Zhipeng YANG()

¹ School of Electronic and Information, Northwestern Polytechnical University, Xi’an 710072, China

Received:2020-12-02 Accepted:2021-11-09 Online:2022-01-05 Published:2022-01-05
Contact: Kaifang WAN E-mail:wankaifang@nwpu.edu.cn;Libo803@nwpu.edu.cn;cxg2012@nwpu.edu.cn;huzijian@mail.nwpu.edu.cn;yzp@mail.nwpu.edu.cn
About author:|WAN Kaifang was born in 1987. He received his B.E. degree in detection homing and control technology from Northwestern Polytechnical University (NWPU), Xi’an, in 2010. He received his Ph.D. degree in system engineering in 2016 from NWPU. Now he is an assistant researcher of the Key Laboratory of Aerospace Information Perception and Photoelectric Control of the Ministry of Education, NWPU. His current research interests include sensor management application, multi-agent theory, approximate dynamic programming, and reinforcement learning theory. E-mail: wankaifang@nwpu.edu.cn||LI Bo was born in 1978. He received his B.S. degree in electronic information technology and his M.S. and Ph.D. degree in systems engineering from Northwestern Polytechnical University (NWPU), Xi’an, in 2000, 2003, and 2008, respectively. He was a postdoctoral fellow with NWPU from 2008 to 2010. He is currently an associate professor with the School of Electronics and Information, NWPU. His current research interests include intelligent command and control, deep reinforcement learning, and uncertain information processing. E-mail: Libo803@nwpu.edu.cn||GAO Xiaoguang was born in 1957. She received her B.E. degree in detection homing and control technology from Northwestern Polytechnical University (NWPU) in 1982. She completed her master degree in system engineering from NWPU in 1986. She received her Ph.D. degree from NWPU in 1989. She is currently a professor and the head of the Key Laboratory of Aerospace Information Perception and Photoelectric Control of the Ministry of Education, NWPU. Her research interests are machine learning theory, Bayesian network theory, and multi-agent control application.E-mail: cxg2012@nwpu.edu.cn||HU Zijian was born in 1996. He received his B.E. degree in detection guidance and control technology from Northwestern Polytechnical University (NWPU), Xi’an in 2018. He is currently pursuing his Ph.D. degree in the College of Electronic and Information, NWPU. His current research interests include reinforcement learning theory and the applications of reinforcement learning in UAV control and fire control systems. E-mail: huzijian@mail.nwpu.edu.cn||YANG Zhipeng was born in 1995. He received his B.S. degree in electrical engineering and automation from Hubei University of Technology, Wuhan, in 2016. He is currently a postgraduate student with the School of Electronics and Information, Northwestern Polytechnical University. His current research interest is intelligent maneuver decision for unmanned systems. E-mail: yzp@mail.nwpu.edu.cn
Supported by:
This work was supported by the National Natural Science Foundation of China (62003267), the Natural Science Foundation of Shaanxi Province (2020JQ-220), and the Open Project of Science and Technology on Electronic Information Control Laboratory (JS20201100339)

摘要/Abstract

Abstract:

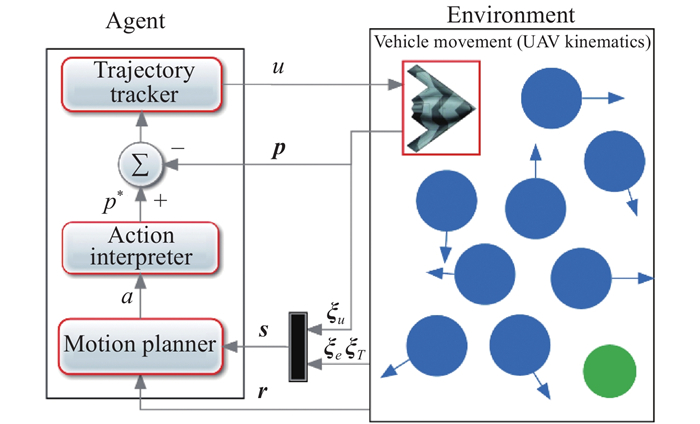

This paper presents a deep reinforcement learning (DRL)-based motion control method to provide unmanned aerial vehicles (UAVs) with additional flexibility while flying across dynamic unknown environments autonomously. This method is applicable in both military and civilian fields such as penetration and rescue. The autonomous motion control problem is addressed through motion planning, action interpretation, trajectory tracking, and vehicle movement within the DRL framework. Novel DRL algorithms are presented by combining two difference-amplifying approaches with traditional DRL methods and are used for solving the motion planning problem. An improved Lyapunov guidance vector field (LGVF) method is used to handle the trajectory-tracking problem and provide guidance control commands for the UAV. In contrast to conventional motion-control approaches, the proposed methods directly map the sensor-based detections and measurements into control signals for the inner loop of the UAV, i.e., an end-to-end control. The training experiment results show that the novel DRL algorithms provide more than a 20% performance improvement over the state-of-the-art DRL algorithms. The testing experiment results demonstrate that the controller based on the novel DRL and LGVF, which is only trained once in a static environment, enables the UAV to fly autonomously in various dynamic unknown environments. Thus, the proposed technique provides strong flexibility for the controller.

Key words: autonomous motion control (AMC), deep reinforcement learning (DRL), difference amplify, reward shaping

. [J]. Journal of Systems Engineering and Electronics, 2021, 32(6): 1490-1508.

Kaifang WAN, Bo LI, Xiaoguang GAO, Zijian HU, Zhipeng YANG. A learning-based flexible autonomous motion control method for UAV in dynamic unknown environments[J]. Journal of Systems Engineering and Electronics, 2021, 32(6): 1490-1508.

图/表 21

参考文献 49

1	STEVENS R C, SADJADI F A, et al. Small unmanned aerial vehicle (UAV) real-time intelligence, surveillance and reconnaissance (ISR) using onboard pre-processing. Proc. of the SPIE, 2008: 6967.
2	DARRAH M, NILAND W, STOLARIK B, et al. UAV cooperative task assignments for a SEAD mission using genetic algorithms. Proc. of AIAA Guidance, Navigation, and Control Conference and Exhibit, 2006. DOI: 10.2514/6.2006-6456.
3	TOMIC T, SCHMID K, LUTZ P, et al Toward a fully autonomous UAV: research platform for indoor and outdoor urban search and rescue. IEEE Robotics & Automation Magazine, 2012, 19 (3): 46- 56.
4	SHAKHATREH H, SAWALMEH A, AL-FUQAHA A, et al Unmanned aerial vehicles (UAVs): a survey on civil applications and key research challenges. IEEE Access, 2019, 7, 48572- 48634. doi: 10.1109/ACCESS.2019.2909530
5	WAN K F, GAO X G, HU Z J, et al. A RDA-based deep reinforcement learning approach for autonomous motion planning of UAV in dynamic unknown environments. Proc. of the 4th International Conference on Control Engineering and Artificial Intelligence, 2020. DOI: 10.26914/c.cnkihy.2020.002792.
6	IMANBERDIYEV N, FU C, KAYACAN E, et al. Autonomous navigation of UAV by using real-time model-based reinforcement learning. Proc. of the 14th International Conference on Control, Automation, Robotics and Vision, 2016: 1−6.
7	WAN K F, GAO X G, HU Z J, et al Robust motion control for UAV in dynamic uncertain environments using deep reinforcement learning. Remote Sensing, 2020, 12 (4): 640- 661. doi: 10.3390/rs12040640
8	CHEE K Y, ZHONG Z W Control, navigation and collision avoidance for an unmanned aerial vehicle. Sensors and Actuators A: Physical, 2013, 190 (1): 66- 76.
9	PANAGOU D A distributed feedback motion planning protocol for multiple unicycle agents of different classes. IEEE Trans. on Automatic Control, 2016, 62 (3): 1178- 1193.
10	ISRAELSEN J, BEALL M, BAREISS D, et al. Automatic collision avoidance for manually tele-operated unmanned aerial vehicles. Proc. of the IEEE International Conference on Robotics and Automation, 2014: 6638−6643.
11	YANG X, DING M Y, ZHOU C. Fast marine route planning for UAV using improved sparse A* algorithm. Proc. of the 4th International Conference on Genetic and Evolutionary Computing, 2011: 190−193.
12	DUAN H B, PEI L. UAV path planning. Berlin: Springer, 2014.
13	WAN K F, GAO X G, LI B Using approximate dynamic programming for multi-ESM scheduling to track ground moving targets. Journal of Systems Engineering and Electronics, 2018, 29 (1): 74- 85. doi: 10.21629/JSEE.2018.01.08
14	YANG Q M, ZHANG J D, SHI G Q Modeling of UAV path planning based on IMM under POMDP framework. Journal of Systems Engineering and Electronics, 2019, 30 (3): 545- 554. doi: 10.21629/JSEE.2019.03.12
15	DONG Z N, ZHANG R L, CHEN Z J, et al Study on UAV path planning approach based on fuzzy virtual force. Chinese Journal of Aeronautics, 2010, 23 (3): 341- 350. doi: 10.1016/S1000-9361(09)60225-9
16	BREZOESCU A, ESPINOZA T, CASTILLO P, et al Adaptive trajectory following for a fixed-wing UAV in presence of crosswind. Journal of Intelligent & Robotic Systems, 2013, 69 (1/4): 257- 271.
17	FADLULLAH Z M, TAKAISHI D, NISHIYAMA H, et al A dynamic trajectory control algorithm for improving the communication throughput and delay in UAV-aided networks. IEEE Network, 2016, 30 (1): 100- 105. doi: 10.1109/MNET.2016.7389838
18	GEE T, JAMES J, MARK W, et al. Lidar guided stereo simultaneous localization and mapping (SLAM) for UAV outdoor 3-D scene reconstruction. Proc. of the International Conference on Image and Vision Computing, 2016: 1−6.
19	PANCHPOR A A, SHUE S, CONRAD JM, et al. A survey of methods for mobile robot localization and mapping in dynamic indoor environments. Proc. of the Conference on Signal Processing & Communication Engineering Systems, 2018: 138−144.
20	ALTAN A, BAYRAKTAR K, HACIOGLU R, et al. Simultaneous localization and mapping of mines with unmanned aerial vehicle. Proc. of the 24th Signal Processing and Communication Application Conference, 2016: 1433−1436.
21	FU C H, OLIVARES M, SUAREZ R, et al Monocular visual-inertial slam-based collision avoidance strategy for fail-safe UAV using fuzzy logic controllers. The International Journal of Robotics Research, 2014, 73 (4): 513- 533.
22	SUTTON R S, BARTO A G. Reinforcement learning: an introduction. 2nd ed. Cambridge, US: MIT Press, 2017.
23	KERSANDT K. Deep reinforcement learning as control method for autonomous UAV. Barcelona, Spain: University of Catalonia, 2017
24	VOLODYMYR M, KORAY K, David S, et al Human-level control through deep reinforcement learning. Nature, 2015, 518 (7540): 529- 533. doi: 10.1038/nature14236
25	HASSELT H V, GUEZ A, SILVER D. Deep reinforcement learning with double Q-learning. Proc. of the 30th AAAI Conference on Artificial Intelligence, 2016. arXiv: 1509.06461.
26	WANG Z Y, SCHAUL T, MATTEO H, et al. Dueling network architectures for deep reinforcement learning. Proc. of the 33rd International Conference on Machine Learning, 2016, 48: 1995–2003.
27	FAN D D, THEODOROU E, REEDER J, et al. Model-based stochastic search for large scale optimization of multi-agent UAV swarms. Proc. of the IEEE Symposium Series on Computational Intelligence, 2017. arXiv: 1803.01106.
28	WANG C, WANG J, SHEN Y, et al Autonomous navigation of UAVs in large-scale complex environments: a deep reinforcement learning approach. IEEE Trans. on Vehicular Technology, 2019, 68 (3): 2124- 2136. doi: 10.1109/TVT.2018.2890773
29	ALEJANDRO R R, CARLOS S, HRIDAY B, et al A deep reinforcement learning strategy for UAV autonomous landing on a moving platform. Journal of Intelligent & Robotic Systems, 2018, 93, 351- 366.
30	KOCH W, MANCUSO R, WEST R, et al Reinforcement learning for uav attitude control. ACM Trans. on Cyber-Physical Systems, 2019, 3 (2): 1- 21.
31	LILLICRAP T T, HUNT J J, PRITZEL A, et al. Continuous control with deep reinforcement learning. arXiv, 2015. arXiv: 1509.02971.
32	SCHULMAN J, LEVINE S, MORITZ P, et al. Trust region policy optimization. Proc. of the 32nd International Conference on Machine Learning, 2015. arXiv:1502.05477.
33	SCHULMAN J, WOLSKI F, DHARIWAL P, et al. Proximal policy optimization algorithms. arXiv, 2017. arXiv:1707.06347.
34	HERNANDEZ E G, ARANDA E. Convergence and collision avoidance in formation control: a survey of the artificial potential functions approach. ALKHATEEB F, MAGHAYREH A E, DOUSH A I, ed. Multi-agent systems-modeling, control, programming, simulations and applications. InTechOpen, 2011: 103−126.
35	LUCA A D, ORIOLO G. Local incremental planning for nonholonomic mobile robots. Proc. of the IEEE International Conference on Robotics and Automation, 1994. DOI: 10.1109/ROBOT.1994.351003.
36	LOIZOU S G, KYRIAKOPOULOS K J Navigation of multiple kinematically constrained robots. IEEE Trans. on Robotics, 2008, 24 (1): 221- 231. doi: 10.1109/TRO.2007.912092
37	KIM J O, KHOSLA P K. Real-time obstacle avoidance using harmonic potential functions. IEEE Trans. on Robotics and Automation, 1992, 8(3): 338–349.
38	LAWRENCE D A, FREW E W, PISANO W Lyapunov guidance vector fields for autonomous unmanned aircraft flight control. Journal of Guidance, Control, and Dynamics, 2012, 31 (5): 1220- 1229.
39	FREW E W, LAWRENCE D A, MORRIS S Coordinated standoff tracking of moving targets using Lyapunov guidance vector. Journal of Guidance, Control, and Dynamics, 2008, 31 (2): 290- 306. doi: 10.2514/1.30507
40	PARK S Circling over a target with relative side bearing. Journal of Guidance Control & Dynamics, 2016, 39 (6): 1- 7.
41	JUNG W, LIM S, LEE D, et al Unmanned aircraft vector field path following with arrival angle control. Journal of Intelligent & Robotic Systems, 2016, 84, 311- 325.
42	NAMHOON C, YOUDAN K, SANGHYUK P. Three-dimensional nonlinear differential geometric path-following guidance law. Journal of Guidance, Control, and Dynamics, 2015, 38(12). DOI: https://doi.org/10.2514/1.G001060.
43	SAMUELSON W, ZECKHAUSER R Status quo bias in decision making. Journal of Risk and Uncertainty, 1988, 1, 7- 59. doi: 10.1007/BF00055564
44	DIXON C. Controlled mobility of unmanned aircraft chains to optimize network capacity in realistic communication environments. Colorado, US: University of Colorado, 2010.
45	QUINTERO S, COLLINS G, HESPANHA J. Flocking with fixed-wing UAVs for distributed sensing: a stochastic optimal control approach. Proc. of the American Control Conference, 2013. DOI: 10.1109/ACC.2013.6580133.
46	WU G F, GAO X G, FU X W Mobility control of unmanned aerial vehicle as communication relay in airborne multi-user systems. Chinese Journal of Aeronautics, 2019, 32 (6): 1520- 1529. doi: 10.1016/j.cja.2019.02.010
47	HORGAN D, QUAN J, BUDDEN D, et al. Distributed prioritized experience replay. arXiv, 2018. arXiv:1803.00933.
48	IVANOV S, YAKONOV A. Modern deep reinforcement learning algorithms. arXiv preprint, arXiv:1906.10025, 2019.
49	HU Z J, WAN K F, GAO X G, et al A dynamic adjusting reward function method for deep reinforcement learning with adjustable parameters. Mathematical Problems in Engineering, 2019, 7619483.

Name	Definition of algorithms
DQN	DQN with an intermediate reward and a stable learning rate
DQN with DA1	DQN with an intermediate reward and a variable learning rate
DQN with DA2	DQN with a difference amplified reward and a stable learning rate
DQN with DA3	DQN with a difference amplified reward and a variable learning rate

Controller	Hit rate at final convergence				Episode number when the hit rate first reaches 80%
Controller	+Null	+DA1	+DA2	+DA3	+Null	+DA1	+DA2	+DA3
DQN	0.721	0.844	0.795	0.894	?	3995	4397	3084
Double DQN	0.812	0.853	0.867	0.925	4983	3567	3854	2902
Dueling DQN	0.854	0.863	0.910	0.956	4125	3458	3541	2756

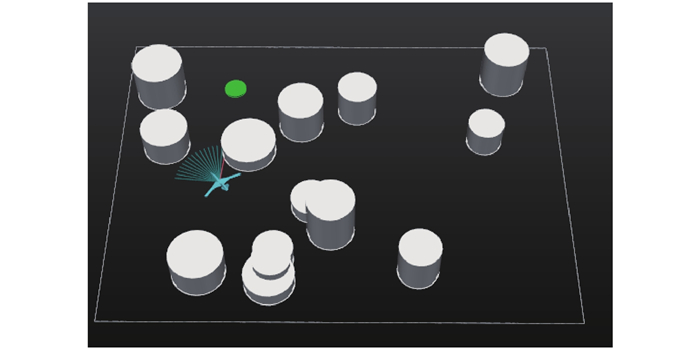

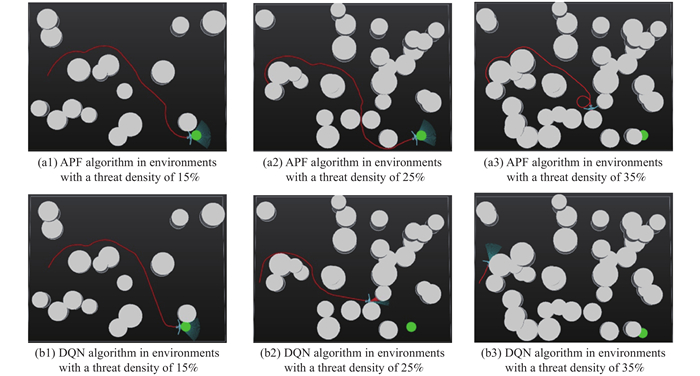

Controller	Environment with a threat density of 15%		Environment with a threat density of 25%		Environment with a threat density of 35%
Controller	Flight time/s	Path length/m	Flight time/s	Path length/m	Flight time/s	Path length/m
APF	21.0	420	24.1	482	Crash	Crash
DQN	20.0	400	Crash	Crash	Crash	Crash
DQN with DA1	19.0	380	20.1	402	Crash	Crash
DQN with DA2	18.8	376	19.7	394	23.1	462
DQN with DA3	15.8	316	17.3	346	22.1	442

Controller	No pop-up threat		One pop-up threat		Two pop-up threats
Controller	Flight time/s	Path length/m	Flight time/s	Path length/m	Flight time/s	Path length/m
APF	26.2	524	Crash	Crash	Crash	Crash
DQN	23.0	460	Crash	Crash	Crash	Crash
DQN with DA1	21.0	420	Crash	Crash	Crash	Crash
DQN with DA2	19.1	382	20.1	402	Crash	Crash
DQN with DA3	18.9	378	19.6	392	22.1	442

Controller	Low-speed threat		Medium-speed threat		High-speed threat
Controller	Flight time/s	Path length/m	Flight time/s	Path length/m	Flight time/s	Path length/m
APF	22.2	444	Crash	Crash	Crash	Crash
DQN	20.3	406	Crash	Crash	Crash	Crash
DQN with DA1	19.2	384	18.7	374	Crash	Crash
DQN with DA2	19.1	382	18.2	364	Crash	Crash
DQN with DA3	18.7	374	17.9	358	18.5	370

A learning-based flexible autonomous motion control method for UAV in dynamic unknown environments

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 21

参考文献 49

相关文章 0

编辑推荐

Metrics

本文评价

Controller	Low-speed target (10 m/s)		Medium-speed target (15 m/s)		High-speed target (20 m/s)
Controller	Flight time/s	Path length/m	Flight time/s	Path length/m	Flight time/s	Path length/m
APF	24.5	490	20.8	416	48.1	962
DQN	22.0	440	30.8	616	Crash	Crash
DQN with DA1	19.3	386	25.6	512	Crash	Crash
DQN with DA2	17.3	346	16.0	320	61.9	1 238
DQN with DA3	16.9	338	14.6	292	43.9	878
